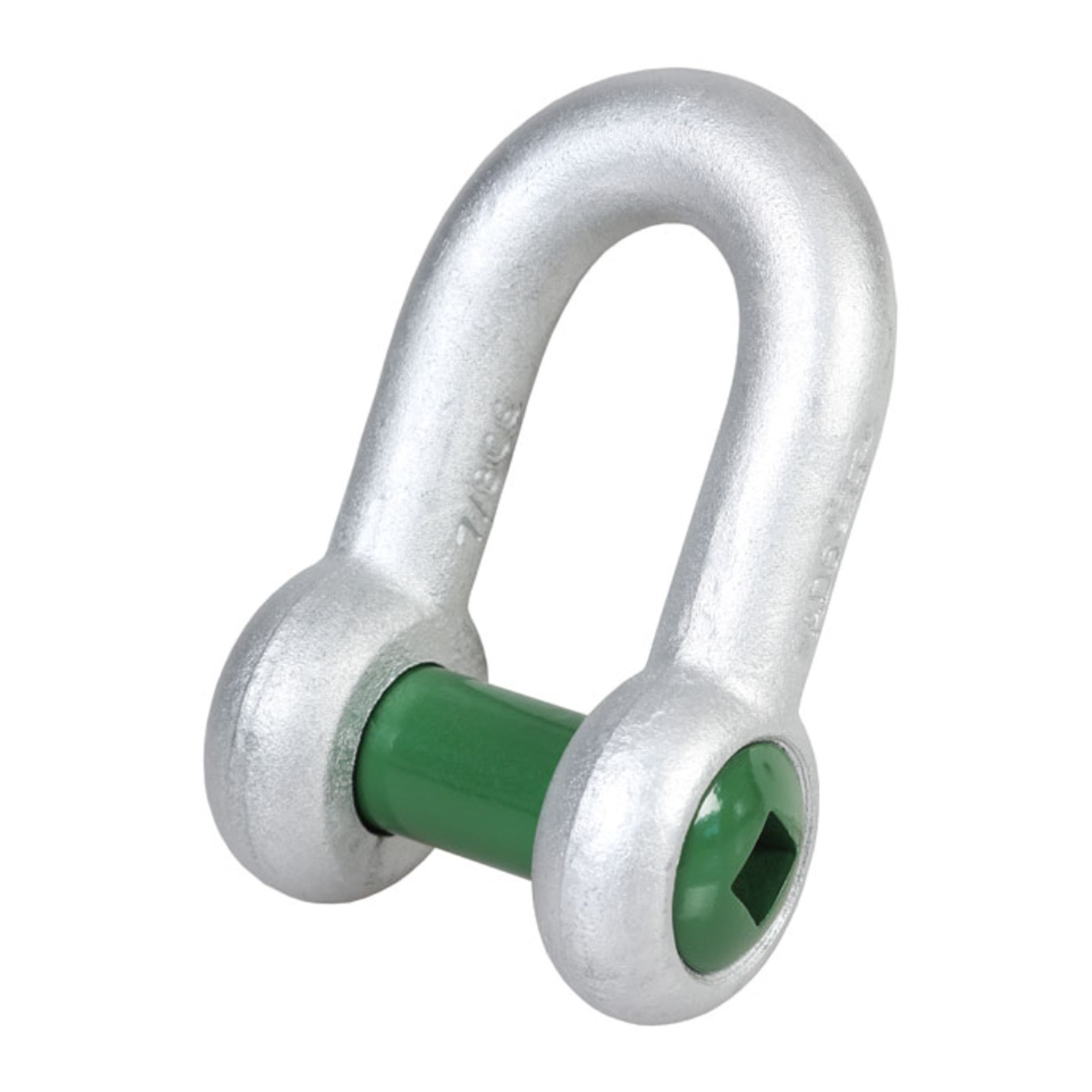

Green Pin® - Square Sunken Hole Dee Shackle
The Green Pin® Square Sunken Hole Dee Shackle is a dee shackle with a square sunken hole screw pin (flush pin).
The shackle contains no protruding parts so it does not damage or get caught. Another important feature is that the chamber in the shackle eye hides the screw thread and reduces wear of rope. Galvanization of the bow shackle ensures its long-term durability.
The Square Suken Hole Shackle is suitable for both one-leg and multi-leg systems and can be assembled with the help of the Green Pin® Sunken Hole Key.
The shackle is available in a range with a working load limit from 2T up to 17T.
Green Pin® - Square Sunken Hole Dee Shackle
SKU: GPSQSUD2
£12.46Price
Excluding VAT
Details
- Grade 6 high tensile steel body and pin, quenched and tempered
- Hot dipped galvanised finish
- Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A
- Minimum breaking load is 6 times the W.L.L.
- Temperature range -20ºC up to +200ºC
- Key for unscrewing pin supplied separately (E-4170)
- Certification available
